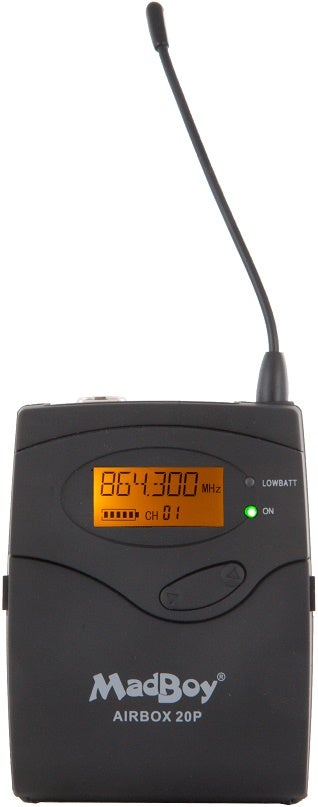

AIRBOX 20P is made to be used with most MadBoy U-TUBE serial wireless microphone sets. Just check that that frequency will match. An exception is the MadBoy U-TUBE 20PD. The transmitter is not compatible due to a different technical solution. Transmitter works with only two AA batteries, which is less expensive than other 9V battery powered transmitters. FOR GEEKS Frequency range: 823-864.900 MHz Mini XLR input RF Output: 10 dBm Modulation type: FM Max. deviation: ±40 kHz Spurious emission: >55 dB Nominal current drain: < 90 mA Power requirements: 2 x 1.5V AA batteryMini XLR pinout: 1: GND, 2: Not connected, 3: MIC / BIAS 1.6V Weight: 0.08 kg SELECTABLE CHANNELS 864.900 829.250 825.750 864.300 829.000 825.500 863.550 828.750 825.250 863.100 828.500 825.000 832.000 828.250 824.750 831.750 828.000 824.500 831.500 827.750 824.250 831.250 827.600 824.000 831.000 827.500 823.750 830.750 827.250 823.500 830.500 827.000 823.250 830.250 826.750 823.000 830.000 826.500 829.750 826.250 829.500 826.000 PACKAGE INCLUDES 1 x AIRBOX 20P 2 x AA battery 1 x Manual
