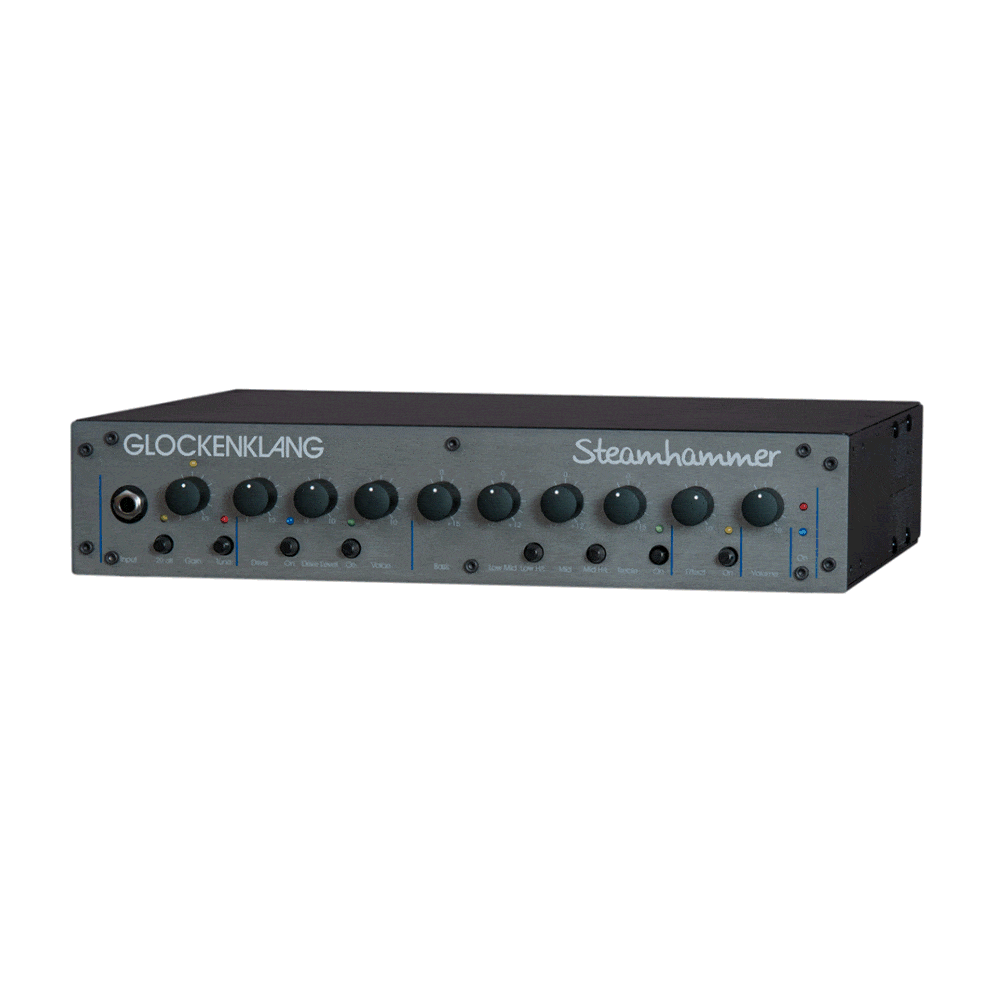

Description The Glockenklang SteamHammer Amp Head….. The Steamhammer is Glockenklang’s next Class D amp. Like all other Glockenklang amps, it features a warm and dynamic sound up to full power. Class A input stage, foot-switchable Drive stage with Level pot and adjustable Voice filter, on-switchable 4-band eq with 2 frequency switchable Mids points, switchable effects-loop, mp3-player input, symmetrical, level-switchable DI-out, tuner out and phones output are the main features. 19″ rack-ears, Glockenklang gig bag are optional. Dynamic – Musical – Power – Warmth – Drive section with Voice-filter – Lightweight Download Owners Manual / Download Technical Data Sheet Detailed Specifications: Features: High performance class D power amp section 700 watts / 4 ohms, 380 watts / 8 ohms, switchable to 700 W / 2,7 ohms, 470 W / 4 ohms, 240 W / 8 ohms (switch at rear) Drive section with Drive and Level pots, on-switchable Voice-filter adjustable, on-switchable (also by foot-switch) Excellent 4-band equalization section with 2 x frequency switchable Mids, on/off switchable EQ section LED overdrive indicator for pre amp LED indicators for switch functions High impedance class A input stage Effect Return also usable as mp3 player and additional mixing input Balanced DI out, switchable level Tuner out Phones out Compact and robust design Llightweight3.4 kg (7.5 lbs) Inputs: Input for instruments with normal level, switchable for instruments with higher level Tone controls: On / Off switchable 4-band EQ Bass 15 dB 60 Hz, -15dB 20 Hz Low Mid /- 12 dB 150 / 240 Hz – switchable mid frequency Mid /- 12 dB 770 / 1.5 KHz – switchable mid frequency Treble /- 15 dB 8 KHz Effect loops 1 parallel effects loop, post eq, intensity controlled by effects section on the front panel, foot-switchable, also usable as second, mixable input and mp3 input Dimensions: 320 x 260 x 63 mm, 12.6″ x 10.2″ x 2.5″ (1.5 rackspaces) Weight: 3.4 kg, (7.5 lbs)
